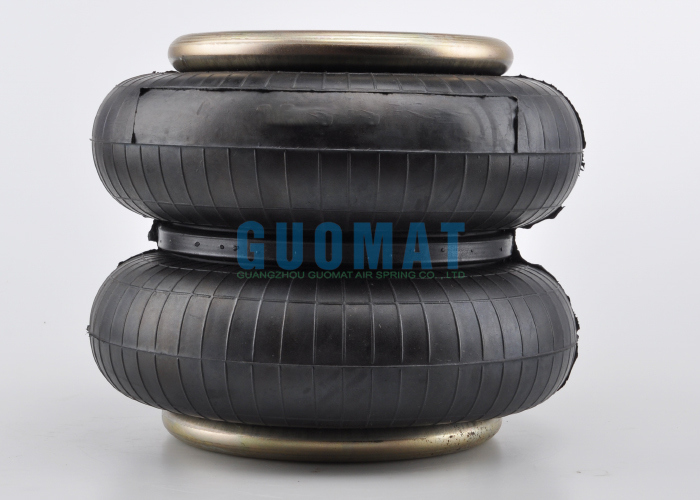

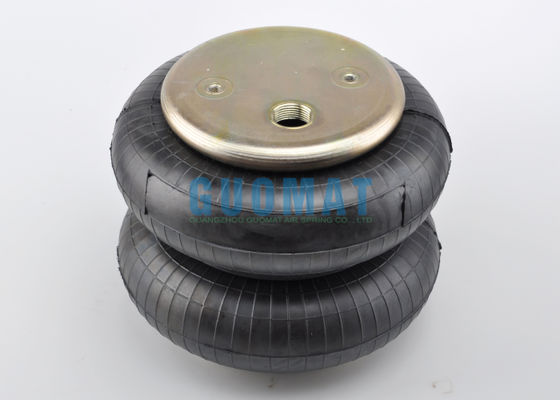

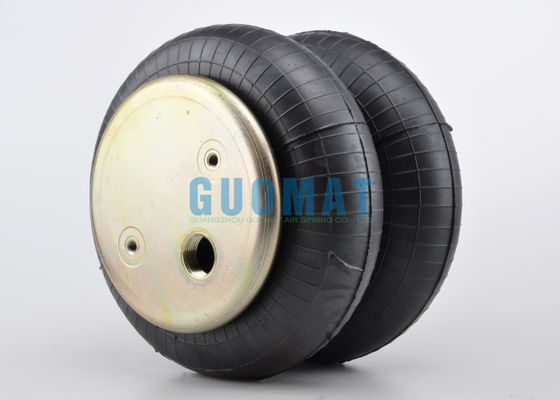

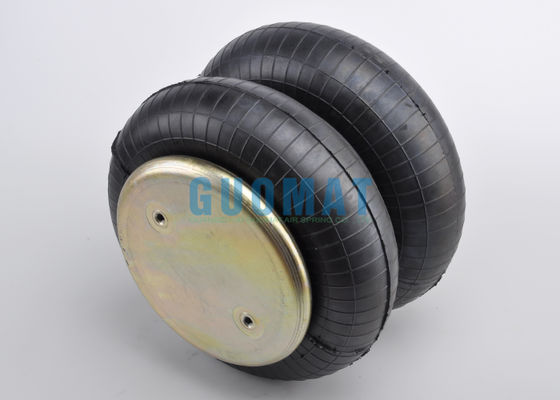

W01-M58-6147 Firestone Convoluted Air Spring 2392114 SCANIA Suspension Air Shock

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Quảng Đông, Trung Quốc
Hàng hiệu:	GUOMAT
Chứng nhận:	ISO/TS16949, ISO9001
Số mô hình:	2B6147

Thanh toán:

Số lượng đặt hàng tối thiểu:	5
Giá bán:	US$59.9-69.9/PC
chi tiết đóng gói:	Hộp carton mạnh mẽ hoặc theo yêu cầu của khách hàng
Thời gian giao hàng:	5-8 ngày làm việc
Điều khoản thanh toán:	L/C, D/A, D/P, Liên minh phương Tây
Khả năng cung cấp:	1000pcs/tuần

Tiếp xúc

Chi tiết sản phẩm

Thương hiệu:	Guomat	Vật liệu:	Cao su và thép
Chức năng:	Giảm sốc	Tình trạng:	Thương hiệu mới
Nhạc lửa:	W01-M58-6147	Cắt kết hợp:	2
Cân nặng:	5,9kg	Chiều cao thiết kế:	241mm
Làm nổi bật:	Firestone air spring for Scania , Convoluted suspension air shock , Scania air spring 2392114

W01-M58-6147 Firestone Convoluted Air Spring 2392114 SCANIA Suspension Air Shock

Product Introduction

A suspension air spring is an elastic element that uses compressed air as its working medium. Enclosed within a cavity composed of a flexible membrane (rubber) and metal components, it leverages the compressibility of air to achieve its elastic action.

Compared to traditional steel coil springs, its core advantage lies in variable stiffness and adjustable vehicle height. Through the coordination of an electronic control system and an air supply unit, it automatically adjusts internal air pressure based on road conditions and driving mode, achieving a balance between comfort and support. It also automatically maintains vehicle height even when the vehicle load changes.

As a result, it is widely used in high-end passenger cars, commercial vehicles, and other applications with specific vehicle height requirements, significantly improving ride smoothness and handling stability.

Product Information

Product Name: Suspension Air Spring

Model Number: 2B6147

Material: Rubber and Steel

Warranty: 12 Months

Delivery Time: 3-7 Working Days

Product OEM Number

Firestone Part Number: W01-M58-6147 / WO1-M58-6147

Firestone Part Number: W01 M58 6147 / WO1 M58 6147

Firestone Part Number: W01M586147 / WO1M586147

Firestone Bellows Number: 228C1.5

Scania OEM Number: 2392114

Scania OEM Number: 5776010

Scania OEM Number: 2326609

Fabio Number: 2DC-320-10C

Product Technical Data

Top Cover Plate Diameter	227mm
Bottom Cover Plate Diameter	227mm
Gas Hole / Air inlet	M14X1.5
Rubber Bellows Diameter	300mm
Natural Height	241mm
Top Cover Plate Screw (Nut) Tooth	2XM10X1.5
Bottom Cover Plate Screw (Nut) Tooth	2XM10X1.5
Screw Center Distance of Top Cover Plate	157.5mm
Screw Center Distance of Bottom Cover Plate	157.5mm
