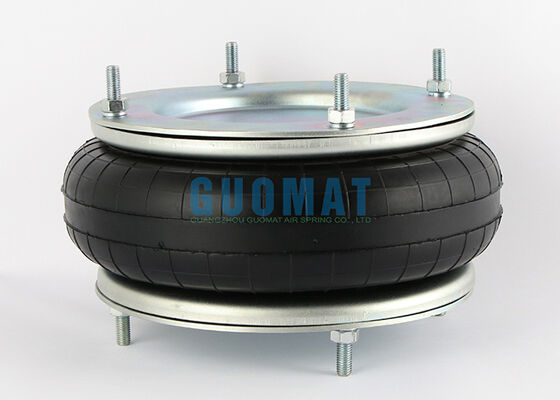

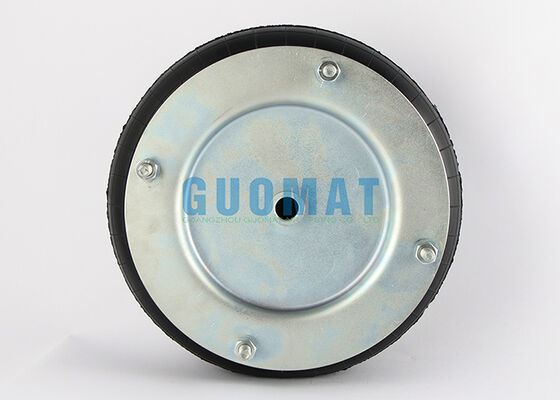

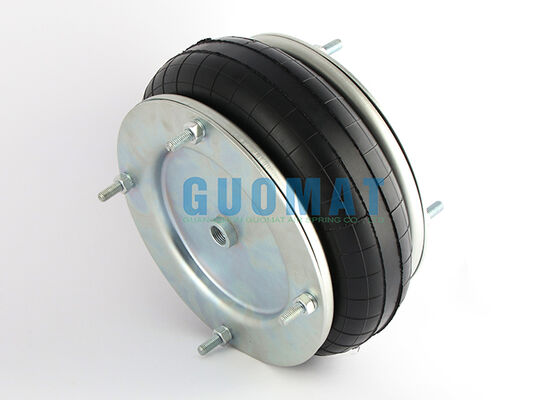

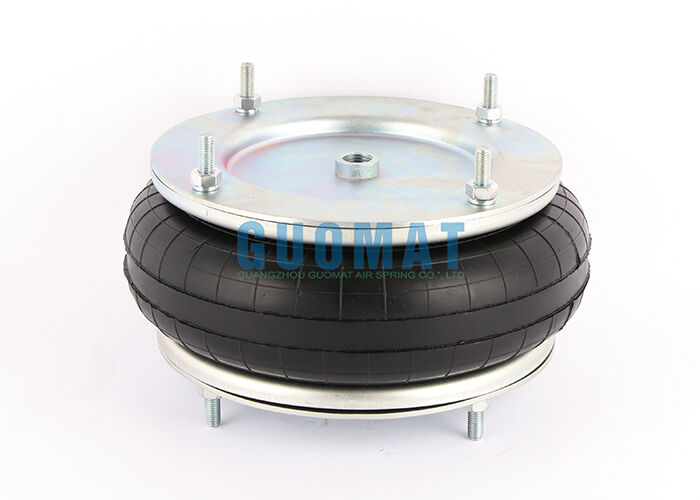

14 1/2" x 1 Double Convoluted Air Spring FS 614-13 DS Contitech Suspension Air Bags

14 1/2" x 1 Double Convoluted Air Spring FS 614-13 DS Contitech Suspension Air Bags

  • 14 1/2" x 1 Double Convoluted Air Spring FS 614-13 DS Contitech Suspension Air Bags
  • 14 1/2" x 1 Double Convoluted Air Spring FS 614-13 DS Contitech Suspension Air Bags
  • 14 1/2" x 1 Double Convoluted Air Spring FS 614-13 DS Contitech Suspension Air Bags
  • 14 1/2" x 1 Double Convoluted Air Spring FS 614-13 DS Contitech Suspension Air Bags
14 1/2" x 1 Double Convoluted Air Spring FS 614-13 DS Contitech Suspension Air Bags
Thông tin chi tiết sản phẩm:
Nguồn gốc: TRUNG QUỐC
Hàng hiệu: GUOMAT
Chứng nhận: ISO/TS16949:2009
Số mô hình: 1B14.5X1T
Thanh toán:
Số lượng đặt hàng tối thiểu: 6 cái
Giá bán: US$159.9-199.9/PC
chi tiết đóng gói: Hộp Carton mạnh hoặc khi khách hàng cần
Thời gian giao hàng: 3-7 ngày làm việc
Điều khoản thanh toán: L/C,D/A,D/P,T/T,Western Union
Khả năng cung cấp: 1000 chiếc / tuần
Tiếp xúc
Chi tiết sản phẩm
Tên: Lò xo không khí cao su Sự miêu tả: lò xo treo khí
Kích thước lắp khí: G1/2 Loại lò xo không khí: Loại xi lanh đơn
số ống thổi: 14 1/2''X1 Contitech: FS 614-13 DS
Đột quỵ: 50mm-175mm bu lông: M10
Làm nổi bật:

14 1/2 inch double convoluted air spring

,

Contitech suspension air bags

,

FS 614-13 DS air spring

14 1/2" x 1 Double Convoluted Air Spring FS 614-13 DS
GUOMAT 2B14.5X2T is a premium double convoluted rubber air spring designed as a direct replacement for ContiTech FS 614-13 DS suspension air bags. Manufactured with high-quality natural rubber, reinforced cord fabric, and durable steel components, this air spring delivers outstanding load support, vibration isolation, and shock absorption for demanding industrial and suspension applications.
The double convoluted design provides a larger effective working stroke and higher load capacity than single convoluted air springs, making it ideal for equipment requiring superior flexibility and stable performance. The air spring automatically adjusts to varying load conditions, helping reduce vibration, minimize mechanical stress, and improve overall equipment efficiency.
Compatible Part Numbers
Continental ContiTech:
FS 614-13 1/2 M10 • Order No.: 68045 • FS 614-13 DS G1/2
Firestone:
WO1-R58-4063 / W01-R58-4063 • WO1 R58 4063 / W01 R58 4063 • WO1R584063 / W01R584063 • Style: 14 1/2x1
Dunlop:
FR: SP1543 • FR Bellows: 1412" x 1 • UK (Pneuride): PNP 3041401 19 • UK Bellows: 141/"x1
Other Manufacturers:
IMI Norgren: M/31141 • Oria: 14 1/2x1 • Parker: 9109064 • Parker Type: 14-1/2x 1 • Pneumatis: DB1417 • Pneumatis Bellows: 1412" x1 • Sopra: DB-1417 • Sopra Type: 141"x1 • Trelleborg Rubena: 14 1/2" x 1
Technical Specifications
Cover plate diameter: 310mm
Bolts: M10
Center distance between bolts: 282.5mm
Maximum outer diameter: 400mm
Maximum height: 175mm
Minimum height: 50mm
Pressure and Volume Specifications
Height H(mm) 3 bar 4 bar 5 bar 6 bar 7 bar 8 bar Vol. V(cm³)
50 2826 3759 4785 5847 6771 7856 883
75 2673 3602 4581 5447 6266 7181 3411
100 2354 3189 3902 4721 5449 6223 5911
125 1902 2523 3143 3748 4277 4841 8087
150 1409 1830 2258 2679 3166 3534 9535
165 1122 1420 1724 2018 2492 2736 10331
Product Images
Double convoluted air spring technical diagram and specifications Close-up view of 14 1/2 x 1 air spring mounting and construction details
