Firestone Air Spring Assembly W01-358-7761 Industrial Vibration Isolation Solution

Thông tin chi tiết sản phẩm:

Nguồn gốc:	QUẢNG CHÂU TRUNG QUỐC
Hàng hiệu:	GUOMAT
Chứng nhận:	ISO/TS16949, ISO9001
Số mô hình:	3H7761

Thanh toán:

Số lượng đặt hàng tối thiểu:	5 cái
Giá bán:	có thể đàm phán
chi tiết đóng gói:	Hộp Carton mạnh hoặc theo yêu cầu của khách hàng
Thời gian giao hàng:	3-7 ngày làm việc
Điều khoản thanh toán:	L/C,T/T, Western Union hoặc những người khác
Khả năng cung cấp:	1000 chiếc / tuần

Tiếp xúc

Chi tiết sản phẩm

Bảo hành:	một năm	OE KHÔNG.:	Đá lửa W01-358-7761
Vật liệu:	Cao su + thép	Tình trạng:	Lò xo không khí hoàn toàn mới
Loại lò xo:	Gas chứa đầy	Cắt kết hợp:	3
kiểu:	kết nối mặt bích	Tên khác:	Giảm xóc
Làm nổi bật:	Firestone air spring assembly , industrial vibration isolation solution , rubber air spring with warranty

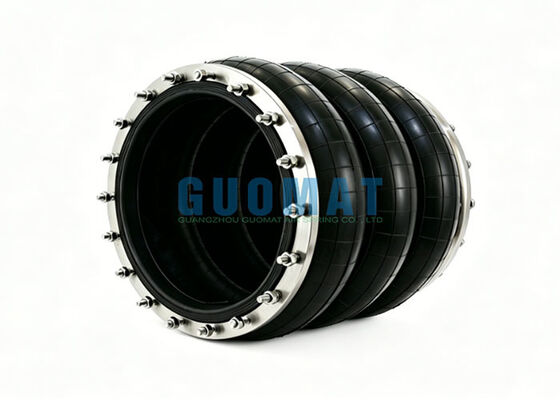

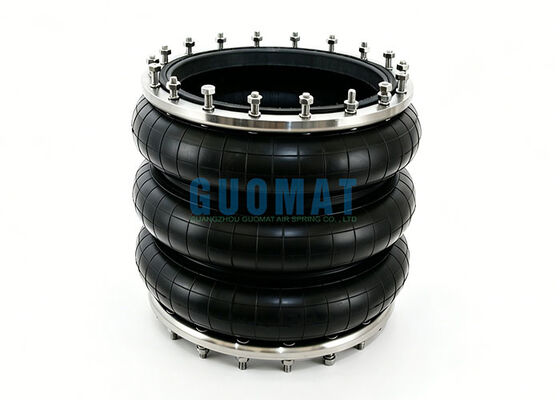

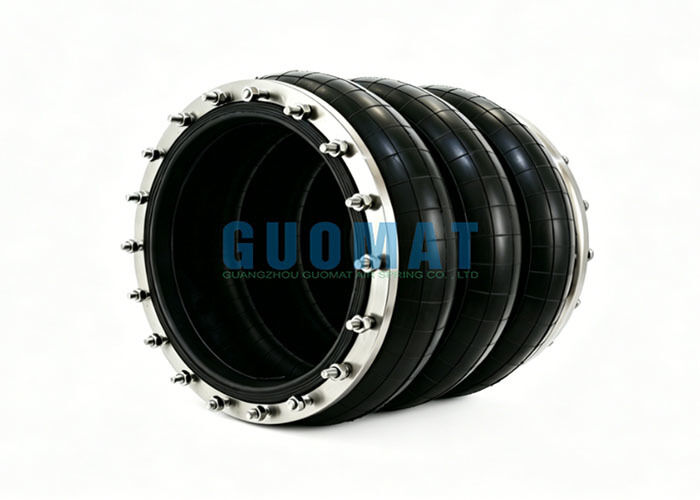

Firestone Air Spring Assembly W01-358-7761 Industrial Vibration Isolation Solution

Product Overview

The GUOMAT 3H7761 Flange Air Spring is engineered to provide exceptional vibration isolation, shock absorption, and load support for a wide range of industrial equipment. Designed as a direct replacement for Firestone W01-358-7761 (Style 312), this air spring assembly combines robust construction with reliable performance in demanding industrial environments.

Product Specifications

Type: Flange Air Spring
Brand: GUOMAT
Model No.: 3H7761
Warranty: 1 Year
Material: Rubber + Steel

Construction & Performance

Manufactured from premium rubber compounds reinforced with high-strength cord fabric, the GUOMAT 3H7761 delivers excellent resistance to fatigue, abrasion, and repeated compression cycles. The heavy-duty steel flange rings ensure secure mounting and long-term structural integrity, even under continuous operation.

Unlike traditional metal springs, the GUOMAT air spring utilizes compressed air as the elastic medium, allowing the system to adapt to varying loads while maintaining superior vibration isolation performance. This helps reduce machine noise, minimize structural stress, and extend the service life of surrounding components.

Cross-Reference Part Numbers

Firestone Style	312
Firestone	W013587761; W01 358 7761; W01-358-7761
Firestone	WO13587761; WO1 358 7761; WO1-358-7761

Technical Data

Bolt Specification	3/8-24 UNF (American Standard Fine Thread)
Number of Flange Ring Bolt Holes	18
Flange Ring Diameter	15.13 inches / 384.3 mm
Center Distance Between Bolts	13.81 inches / 350.7 mm
Airbag Outer Diameter	16.00 inches / 406.4 mm
Included Bolt Length	1.87 inches / 47.5 mm
Minimum Height	4.3 inches / 109.2 mm

Quality Assurance

Every GUOMAT 3H7761 air spring undergoes strict quality inspections and performance testing before shipment. Each unit is checked for air tightness, dimensional accuracy, and structural integrity to ensure reliable operation in industrial applications worldwide.

Whether used for machinery isolation, shock reduction, or pneumatic force generation, the GUOMAT 3H7761 provides a cost-effective and dependable alternative to the Firestone W01-358-7761 air spring assembly.
