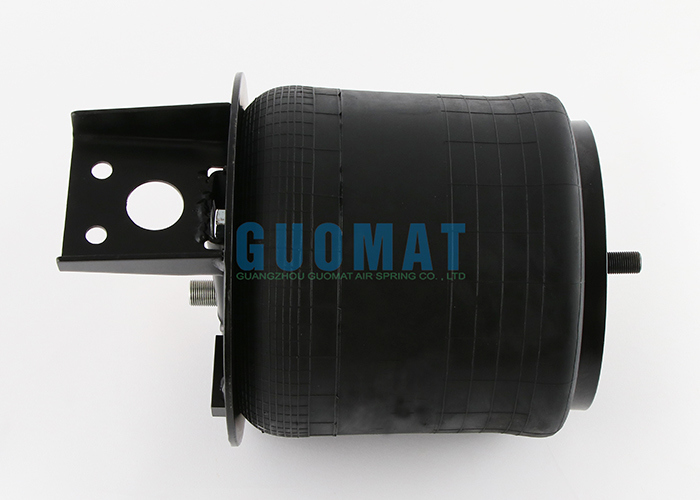

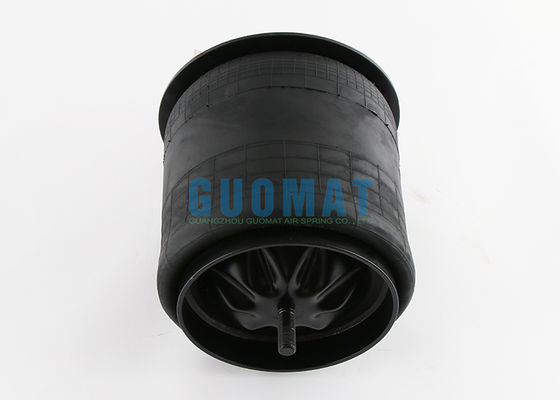

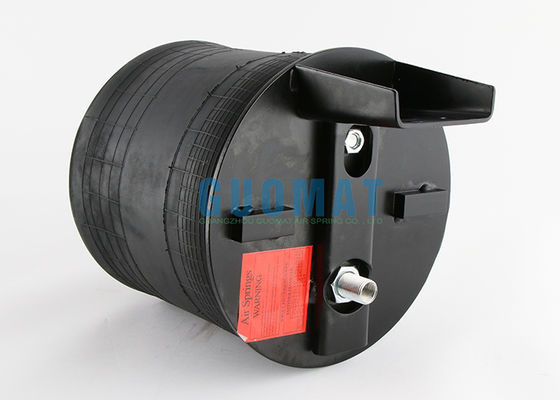

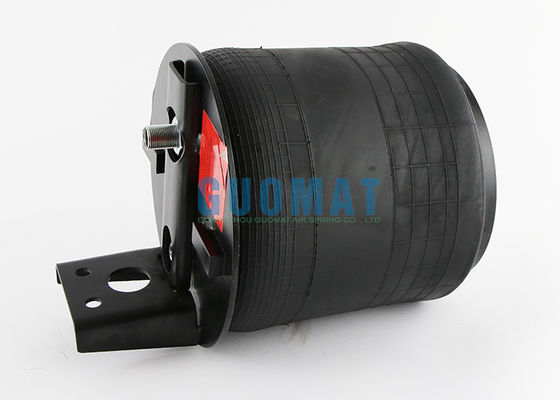

TRL230LLH Truck Suspension Air Spring HINO HN 700 RR Trailer Rubber Air Bags

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Quảng Châu Trung Quốc
Hàng hiệu:	GUOMAT
Chứng nhận:	ISO/TS16949, ISO9001
Số mô hình:	1T TRL230LLH

Thanh toán:

Số lượng đặt hàng tối thiểu:	5 CÁI
Giá bán:	USD79.9-99.9/PC
chi tiết đóng gói:	Hộp carton mạnh mẽ hoặc theo yêu cầu của khách hàng
Thời gian giao hàng:	3-7 ngày làm việc
Điều khoản thanh toán:	L/C, T/T, Liên minh phương Tây hoặc những người khác
Khả năng cung cấp:	1000pcs/tuần

Tiếp xúc

Chi tiết sản phẩm

Mã sản phẩm:	TRL230LLH	Vật liệu sản phẩm:	Cao su và thép
Xe làm:	xe tải hoặc xe kéo	Chất lượng:	Đã thử nghiệm 100 %
Đấu thầu:	Giảm sốc	Mã HS:	8708809000
Dịch vụ hậu mãi:	12 tháng	tên khác:	mùa xuân không khí xe tải
Làm nổi bật:	HINO HN 700 air spring , truck suspension rubber air bags , trailer air spring with warranty

TRL230LLH Truck Suspension Air Spring HINO HN 700 RR Trailer Rubber Air Bags

Specifications and Detailed Technical Parameters

320mm natural height; 220mm minimum height; 620mm maximum height; 255mm cover plate diameter; M12X1.25 stud; 200mm piston diameter; 168mm piston height.

Brand: GUOMAT
Model Name: Truck Air Suspension
OEM: HINO TRL230LLH
OEM: HINO TRL230LLH HN 700 RR
Working Temperature: -40°C bis +70°C
Failure Testing: ≥3 millions

TRL230LLH Truck Suspension Air Spring - Rubber Airbag Specifically Designed for Hino HN 700 RR Trailers

This air spring plays a crucial role in the truck suspension system:

Body Support: Provides primary support to the trailer by compressing air inside, bearing the weight of the cargo.
Shock Absorption: Effectively filters and absorbs bumps and vibrations from the road surface using the elasticity of air, protecting cargo and the vehicle structure.
Height Adjustment: Helps maintain a relatively stable ride height regardless of load changes.
Improved Ride Smoothness: Provides a smoother, more stable ride for the trailer, reducing impact.

Key Features

Material: Made of high-strength, wear-resistant rubber, typically reinforced with internal cord layers to withstand high pressure and heavy loads.
Structure: As the core elastic element of the suspension system, its shape and structure are specifically designed to match the suspension of the HN 700 RR trailer.
Reliability: Designed to withstand the harsh operating environments of commercial vehicles, requiring excellent fatigue resistance, aging resistance, and weather resistance.

Application Scenarios

This part is a repair replacement. It is used to replace and repair the original air springs when they fail due to aging, wear, tear, or accidental damage, restoring the trailer suspension to normal function.

Specifications

Applicable Vehicles	Designed specifically for Hino trucks, especially the TRL230LLH model.
Material	Made of durable natural rubber.
Mounting Location	Typically for rear suspension.
Weight	Approx. 10 kg.
Packaging Dimensions	115 x 80 x 80 cm.
