W02-358-7059 Firestone Truck Cab Air Spring W02-N19-7059 Replacement Air Shock

W02-358-7059 Firestone Truck Cab Air Spring W02-N19-7059 Replacement Air Shock

  • W02-358-7059 Firestone Truck Cab Air Spring W02-N19-7059 Replacement Air Shock
  • W02-358-7059 Firestone Truck Cab Air Spring W02-N19-7059 Replacement Air Shock
W02-358-7059 Firestone Truck Cab Air Spring W02-N19-7059 Replacement Air Shock
Thông tin chi tiết sản phẩm:
Nguồn gốc: Quảng Đông, Trung Quốc
Hàng hiệu: GUOMAT
Chứng nhận: ISO/TS16949:2009
Số mô hình: G7059
Thanh toán:
Số lượng đặt hàng tối thiểu: 6 PC
Giá bán: $39.9/pc-$49.9/pc
chi tiết đóng gói: Hộp carton mạnh hoặc khi khách hàng cần
Thời gian giao hàng: 2-8 ngày làm việc
Điều khoản thanh toán: T/T, Western Union, L/C, PayPal, những người khác đàm phán
Khả năng cung cấp: 10000pcs/tuần
Tiếp xúc
Chi tiết sản phẩm
Tên vật phẩm: Mùa xuân không khí Cab Vật liệu: Nhựa
Chức vụ: ở phía sau Bảo hành: 1 năm
Bưu kiện: Thùng / pallet Hoạt động: Cài đặt dễ dàng
Áp dụng cho: Xe tải Loại vật phẩm: Ghế, Băng ghế và Accessoires
Làm nổi bật:

Firestone truck cab air spring

,

cab air shock absorber replacement

,

Firestone W02-358-7059 air shock

W02-358-7059 Firestone Truck Cab Air Spring W02-N19-7059 Replacement Air Shock
Product Specifications
Item Cab Air Shock Absorber
Model Number G7059
Size Standard Size
Car Make For Truck
Position Rear
OEM Numbers
  • FIRESTONE W02-358-7059
  • FIRESTONE W02 358 7059
  • FIRESTONE W023587059
  • FIRESTONE Wo2-358-7059
  • FIRESTONE Wo2 358 7059
  • FIRESTONE Wo23587059
  • W02-358-7059 ABSZ70-7059 00125724 7059 32466301 32803501 W02N190759
Technical Data
Maximum Height: 11.7"
Minimum Height: 3.66"
Outer Diameter: 2.9"
Top Cover Diameter: 2.84"
Bottom Piston Diameter: 3.20"
Bottom Piston Height: 3.13"
Air Fitting: 1/8NPT
Installation Instructions
Step 1: Lift & Secure the Cab Use the truck's cab tilt mechanism to fully raise the cab.
THIS IS NON-NEGOTIABLE: Immediately place sturdy support stands or solid wood blocks under the cab's main frame. Never rely solely on the hydraulic lift cylinder. This is your primary safety backup.
Step 2: Replace the Air Spring Release air pressure: Locate and disconnect the air line from the old air spring. You may hear a hiss as pressure escapes.
Remove the old unit: Unbolt the top and bottom mounting bolts. Some wiggling or gentle prying might be needed to free it.
Install the new one: Position the new air spring. Hand-tighten the new mounting bolts to ensure they thread correctly.
Reconnect: Push the air line onto the new air spring's fitting until it clicks and locks securely.
Step 3: Test for Leaks & Final Check Carefully remove the support stands and slowly lower the cab.
Start the engine to inflate the air springs. The cab should rise to its normal height.
Leak Test: Mix soap and water and spray it on the air line connection and the air spring itself. Look for bubbles, which indicate a leak that must be fixed.
Go for a short test drive to ensure stability and listen for unusual noises.
Related Models
  • W02-358-7076 Max.H 11.25" Min H 2.4"
  • W02-358-7054 Max.H 13.29" Min H 4.04"
  • W02-358-7098 Max.H 13.40" Min H 4.00"
  • W02-358-7040 Max.H 13.56" Min H 4.04"

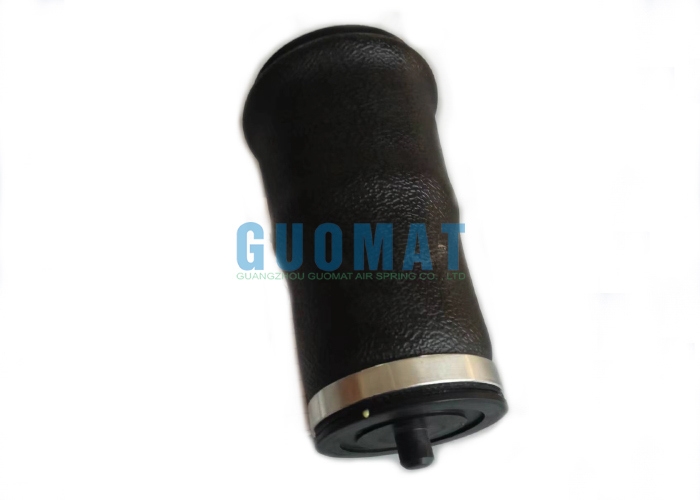

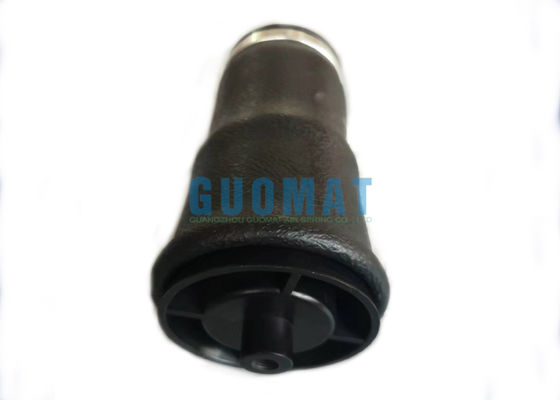

Product Image
W02-358-7059 Firestone Truck Cab Air Spring W02-N19-7059 Replacement Air Shock 0
