| Nguồn gốc: | Guangdong , China |
| Hàng hiệu: | GUOMAT |
| Chứng nhận: | ISO/TS16949 |
| Số mô hình: | 940 MB**CPL / 940MB / 940 MB |
| Số lượng đặt hàng tối thiểu: | 1pc |
|---|---|
| Giá bán: | $59-159/pc |
| chi tiết đóng gói: | strong carton box or as customer's need |
| Thời gian giao hàng: | 2-8 work days |
| Điều khoản thanh toán: | T/T, Western Union,paypal or others |
| Khả năng cung cấp: | 1000pcs/week |
| Material: | Rubber Bellows ,Steel Piston | GOODYEAR: | 1R11-752 / 1R11 752 / 1R11752 |
|---|---|---|---|
| Other Name: | S.A.F Air Spring Shock | CONTITECH: | 940 MB**CPL / 940MB / 940 MB |
| BPW: | BPW 30K | FIRESTONE: | W01 M58 8609**CPL / W01-M58-8609 / W01M588609 |
| PHOENIX: | 1DK 21 K**CPL / 1DK21K / 1DK21 K | DUNLOP FR: | D11B36 |
| Điểm nổi bật: | air ride springs,truck air bag suspension |
||

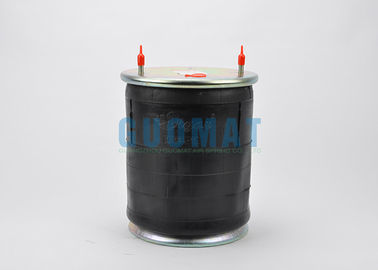

Truck Air Springs CONTITECH 940 MB**CPL / 940MB / W01M588609 For BPW 30K
OEM Cross Number:
GUOAMT NO.:1T940MB CPL
CONTITECH 940 MB**CPL / 940MB / 940 MB
FIRESTONE 1T17D-4.3 / 1T17D 4.3 / 1T17D4.3
FIRESTONE W01 M58 8609**CPL / W01-M58-8609 / W01M588609
GOODYEAR 1R11-752 / 1R11 752 / 1R11752
PHOENIX 1DK 21 K**CPL / 1DK21K / 1DK21 K
DUNLOP FR D11B36
AIRTECH 120242
AIRTECH 3940P
CONTI 940MB
DUNLOP FR D11U31
FIRESTONE 1T17D-4.3
FIRESTONE W01M588613
GOODYEAR 1R11-703
GOODYEAR 566-22-3-501
PHOENIX 1DK21K
WABCO 9517117630
TAURUS KR732-01
VIBRACOUSTIC V1DK21K
OEM Suspension Supplier Number:
BPW BPW 30K
BPW 05.429.43.21.0
BPW 0542940510
BPW 0542940910
BPW 0542941510
BPW BPW30K
GRANNING 15916
ROR MLF7114
ROR MLF7177
GART 293.0.411
GART C293/A
BPW 05.429.40.91.0 940 MB Typ 30 K service assembly
PIRELLI 1TC30030205536
Manufacturer Original-part no. Model
BPW 05.429.40.91.0 30 K
Schmitz 013 769 30 K
Scania 2406164 30 K
service assembly weight 4,7 kg
M12: max. 70 Nm
M16: max. 130 Nm
M22x1.5: max. 20 Nm
The Composition Of Reversible Sleeve Models Rolling Air Spring Element Has The Following Aspects-GUOMAT
❶ screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for maximum strength and durability. It is used to attach the air spring to the vehicle’s suspension system.
❷ Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the suspension system and providing the air inflation.
❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.
❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.
❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.
❻ Bottom Piston - Provides a low installation of air spring. To control the pressure in a changing under the load characteristics of spring.
❼Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an additional vehicle suspension spring.
