FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags

FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags

  • FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags
  • FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags
  • FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags
  • FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags
FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags
Thông tin chi tiết sản phẩm:
Nguồn gốc: Quảng Châu, Trung Quốc
Hàng hiệu: GUOMAT
Chứng nhận: ISO/Ts16949:2009
Số mô hình: 2B6905
Thanh toán:
Số lượng đặt hàng tối thiểu: 6pcs
Giá bán: $59.9-69.9/pc
chi tiết đóng gói: Bao bì hoặc bao bì carton theo yêu cầu của khách hàng
Thời gian giao hàng: 5-8 ngày làm việc
Điều khoản thanh toán: L/C, T/T, Liên minh phương Tây
Khả năng cung cấp: 10.000 mỗi tuần
Tiếp xúc
Chi tiết sản phẩm
Chất liệu lò xo: Cao su tự nhiên Chất lượng: Đã kiểm tra 100%
chức năng: giảm Sốc Bảo hành: 12 tháng
đá lửa: W01-358-6905 Goodyear: 2B9-206
Đột quỵ: 81mm-274mm Khối đệm: Với
Làm nổi bật:

Contitech replacement air spring

,

Firestone convoluted air bags

,

industrial air spring with warranty

FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags
Attribute Value
Spring Material Natural Rubber
Quality 100 % Tested
Function Reduce Shock
Warranty 12 Months
Firestone W01-358-6905
Goodyear 2B9-206
Stroke 81mm-274mm
Buffer Block With
Product Description

Brand: GUOMAT

Model No.: 2B6905

Bellows No.: 2B200

Manufacturer Warranty: 1 Year

Material: Rubber and Steel

Condition: Brand New

Packing: Carton/Pallet

Cross Reference Number
Firestone W01-358-6905
Contitech FD 200-19 315
Goodyear ZB9-206/209
Goodyear 578923200/2
Triangle 6325/4315
EZ Ride 8030120
Dayton 3546905
Leland Sc2071
Navistar 1685175C1
Hendrickson 458431
Hendrickson S3518/S5270
Ridewell 1003586905C
SAF Holland 57006905
Tuthill 6389
Watson&Chalin As0020
Silent Drive As6882
Technical Data
  1. Nut / Blind Nut
    Center Distance Between Threaded Holes and Air Holes: 38.5mm
    Screw Center Distance of Top Cover Plate: 89 mm
    Screw Center Distance of Bottom Cover Plate: 89 mm
  2. Gas Hole / Air inlet / Air Fitting
    Gas Hole / Air inlet: 1/4 N P.T.F. / 1/4NPTF
  3. Cover Plate
    Top Cover Plate Diameter: 160 mm
    Bottom Cover Plate Diameter: 160 mm
  4. Rubber Bellows
    Rubber Bellows MAX Diameter: 251.5 mm
    The Working Stroke: MAX 274 mm to MIN 81 mm
    Maximum Height: 274 mm
    Minimum Height: 81 mm
    Compression Height: 193 mm
  5. Bumper block / Buffer block
    With Bumper Block
  6. Girdle Hoop / Girdle Ring
    Without Girdle Hoop

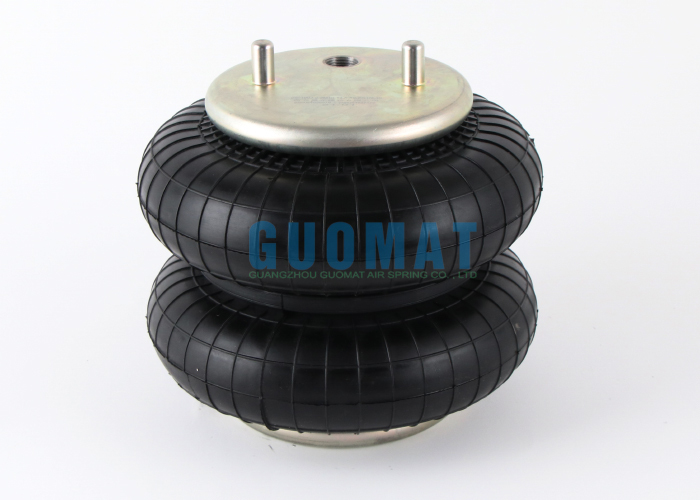

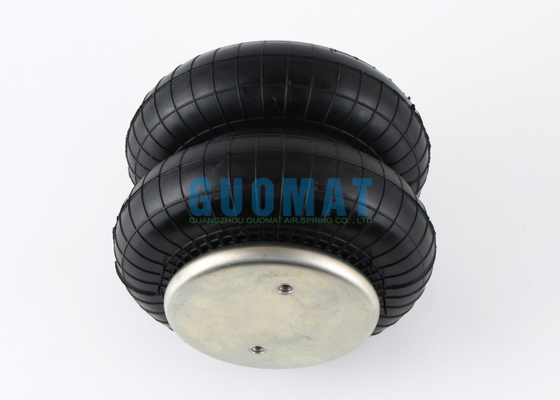

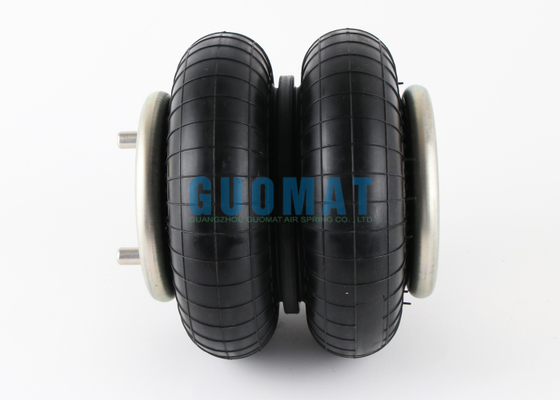

Product Images
FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags 0 FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags 1
