6''X2 Industrial Applications Rubber Firestone W01-R58-4070 Double Convoluted Air Springs

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Quảng Châu, Trung Quốc
Hàng hiệu:	GUOMAT
Chứng nhận:	ISO/TS16949:2009
Số mô hình:	PM/31062

Thanh toán:

Số lượng đặt hàng tối thiểu:	6pcs
Giá bán:	$99.9-159.9/pc
chi tiết đóng gói:	Hộp carton mạnh hoặc khi khách hàng cần
Thời gian giao hàng:	2-8 ngày làm việc
Điều khoản thanh toán:	T/T, Western Union, L/C
Khả năng cung cấp:	1000pcs/tuần

Tiếp xúc

Chi tiết sản phẩm

Mẫu số:	PM/31062	Chất lượng:	Đã thử nghiệm 100 %
Đấu thầu:	Giảm sốc	Gói vận chuyển:	Thùng thuốc mạnh
Dịch vụ sau bán hàng:	12 tháng	Phần:	Lò xo không khí
Kiểu:	Chứa đầy khí	Màu sắc:	Đen

6''X2 Industrial Applications Rubber Firestone W01-R58-4070 Double Convoluted Air Springs

Product Description

Norgren PM/31062

Norgren PM 31062

Norgren PM31062

Nominal 0 (inch)xconvolutions:6"x2/6"x2/6x2

PM31062 Can Replace The Following Part Number

Continental ContiTech: FD 76-14 1/2 M8

Continental ContiTech: FD 76-14 Dl G1/2

Continental ContiTech: FD 76-14 DI G1/2 M8

Continental ContiTech: FD 76-14 Dl G1/2 CR

Continental ContiTech: FD 76-14 DI CR G1/2

Continental ContiTech: FD 76-14 DICR/FD76-14DICR/FD7614DICR

Continental ContiTech Bellow: FD 76-14/FD76-14/FD7614

Firestone No.: W01-R58-4070/W01 R58 4070/W01R584070

Firestone Style: 6"x2

Dunlop FR: 6"x2 SP1646(COMPOSITE)

Dunlop FR: 6"x2 SP2917 (ALUMINIUM)

Dunlop UK (Pneuride): A 3 1330 02 01/A313300201

Parker: 6"x2 9109001A

YS-AIR: YS-160-2VS/YS 160 2VS/YS1602VS

Specifications and Detailed Technical Parameters: Norgren PM/31062

Nut/blind nut

Top plate screw (nut) teeth: 4×M8
Screw (nut) teeth of the bottom cover plate: 4×M8

Air hole/air inlet/air fittings

Air hole/air inlet: G1/2

Rubber Bellows

Top plate diameter (width): 153.5 mm

Diameter (width) of the bottom cover plate: 153.5 mm

Material top and bottom plate: aluminum

Bell rubber bellows
Maximum diameter at 7 bar: 178mm

Rubber bellows stroke: 80mm-195m

Bumper block/bumper block

Without bumper block

Belt loop/Girdle hoop/Girdle ring

One piece of belt loop/girdle hoop/girdle ring

Type	Order No.
CR Rubber bellows only	6×2
with aluminum plates, G1/2 air inlet	PM/31062

Min. pressure: 0 bar

Return force to min.height: ≤180N

Overall weight with clamped plates: 1.8kg

Vibration isloation-dynamic characteristic values
Design height H: recommended 160mm, minimum 150mm

Pressure p [bar]	3	4	5	6	7	8	Vol. V [l]
Force (Load) [KN]	2.6	3.5	4.5	5.5	6.5	7.6	2.0
Spring rate [N/cm]	675	855	1035	1215	1395	1570
Natural frequency [Hz]	2.5	2.4	2.4	2.3	2.3	2.3

Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	160	2.6	3.5	4.5	5.5	6.5	7.6	2.0
	140	3.3	4.5	5.6	6.8	8.1	9.3	1.7
	120	3.9	5.2	6.6	8.0	9.4	10.8	1.5
	100	4.6	6.2	7.8	9.4	11.1	12.8	1.2

About Suspension Air Springs

Adjustability: By filling or releasing air, the spring's stiffness and height can be easily adjusted. This allows the vehicle to:
Leveling: Maintaining the same height regardless of load (empty or fully loaded) ensures headlight coverage and driving stability.
Adjusting Height: Certain applications (such as off-road vehicles and specialized trucks) require the chassis to be raised or lowered.
Adjusting Comfort: Adjusting the suspension's firmness or firmness based on road conditions or personal preference.
Lightweighting: Compared to metal springs, air springs are lighter, helping improve fuel economy.
Smooth and Quiet: Providing a smoother, quieter ride while effectively filtering out road vibrations.

Main Applications

Commercial Vehicles: Trucks, buses, and trailers (the most traditional application, used to ensure vehicle balance after loading).
Passenger Vehicles: Suspension systems (such as air suspension) in high-end sedans and SUVs provide comfort and driving stability.
Industrial Equipment: Used as shock absorbers in precision instruments, machinery, and other equipment.

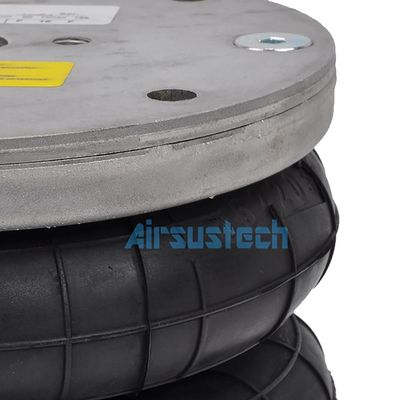

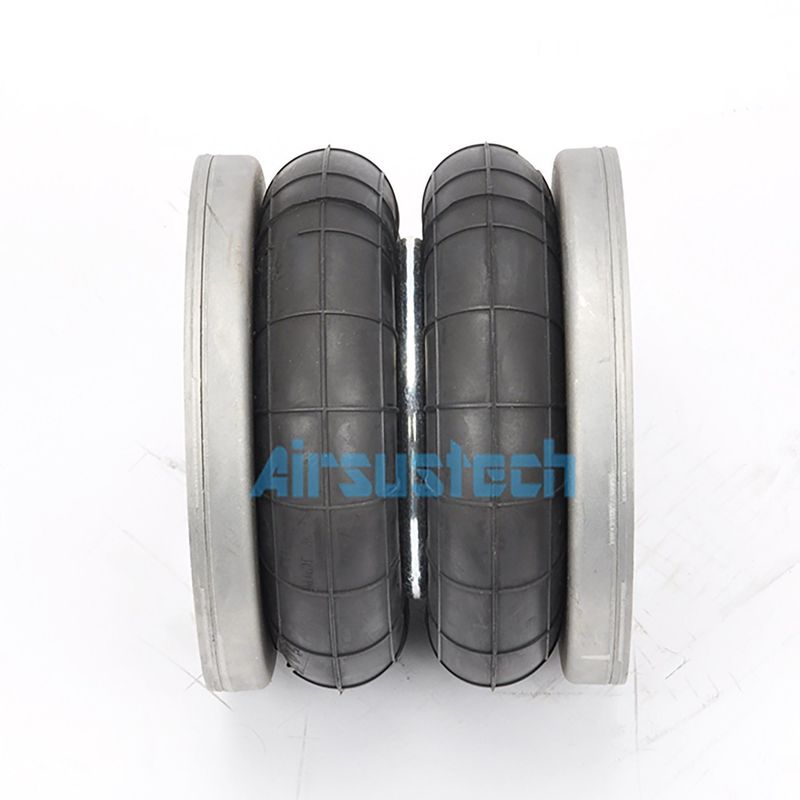

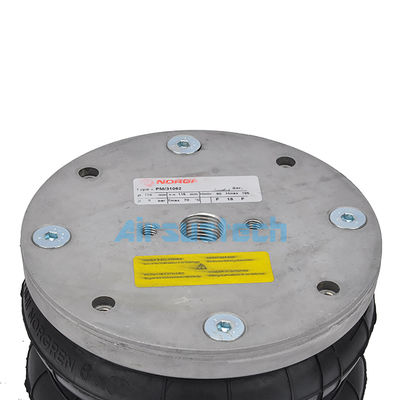

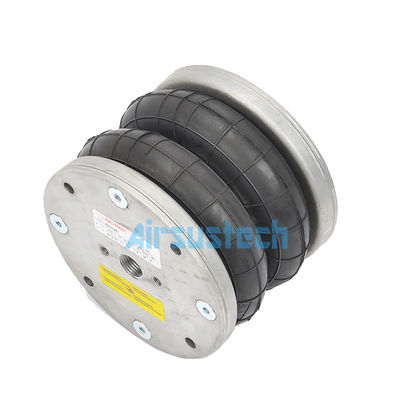

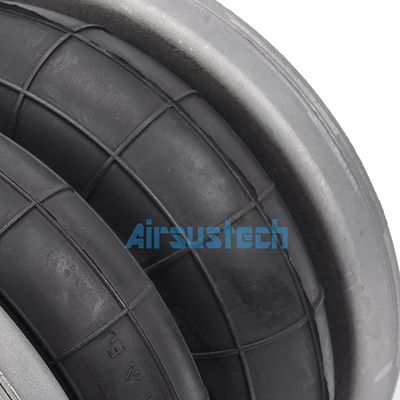

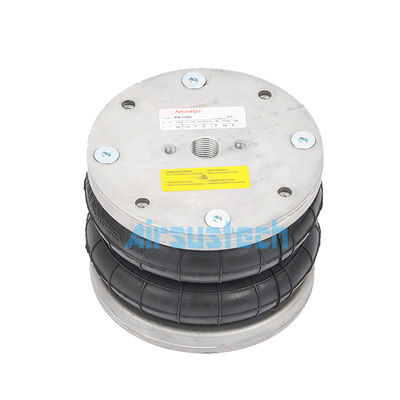

The Related Picture of PM/31062
