EB-215-80 Air Springs Replacement FS120-9 Convoluted Rubber Industrial Air Balloon
Product Description
Brand: GUOMAT
Model Number: 1B120-9
Warranty: 1 Year
Material: Rubber+Steel
Can Replace The Following Manufacturer Number:
Firestone: W01-M58-6165
Contitech: FS 120-9
Dunlop(FR): 8''x1 S08101
Bosch: 822419003
Festo EB-215-80
Norgren: PM/31081 (8X1)
Weforma: WBE 300-E1
Airtech: 140293
Airtech: 111003
Airtech: 1B-190FB
Negatech: 1S120-9 3/4 M8
Specifications and Detailed Technical Parameters
Nut/blind nut
Top plate screw (nut) teeth: 2XM8x1.25
The screw center distance of the top cover plate: 70mm
Screw (nut) teeth of the bottom cover plate: 2XM8x1.25
The screw center distance of the bottom cover plate: 70 mm

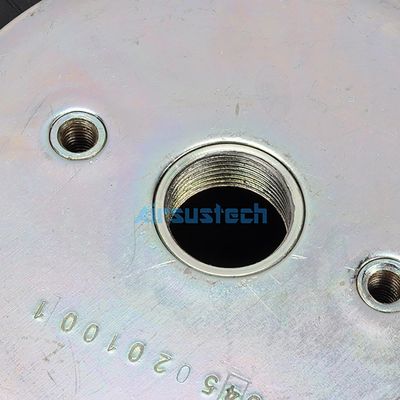

Air hole/air inlet/air fittings
Air hole/air inlet: G3/4
The screw center distance between the air hole and the nut: 30mm
Cover plate
Top plate diameter: 135 mm
Diameter of the bottom cover: 135 mm
Bell rubber bellows
Maximum diameter of rubber bellows: 215 mm
Natural diameter of rubber bellows: 90 mm
Working stroke: minimum 50 mm to maximum 115 mm
Maximum height: 115 mm
Minimum height: 50 mm
Bumper block/bumper block
No bumper block
Belt loop/Belt loop/Girdle hoop
Without belt loop/girdle hoop
Min. pressure: 0 bar
Return force to min.height: ≤200N
Overall weight with clamped plates: 2.0kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 110mm, minimum 90mm
| Pressure p[bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force(Load) [KN] | 3.9 | 5.3 | 6.8 | 8.3 | 9.6 | 10.9 | 1.8 |
| Spring rate [N/cm] | 1315 | 1620 | 1925 | 2230 | 2535 | 2840 | |
| Natural frequency [Hz] | 2.9 | 2.8 | 2.7 | 2.6 | 2.6 | 2.6 |
Pneumatic application-static characteristic values
Force F[KN]
The Main Functions of Air Springs in Agricultural Sprayers
1. Shock Absorption and Cushioning
Machine Protection: Large sprayers are subject to significant bumps and vibrations when operating in rugged fields. Air springs effectively absorb and cushion these impacts, protecting the sprayer's main beam, boom, hydraulic system, and precision components, reducing failure rates and repair costs.
Crop Protection: A smooth ride reduces damage to crops caused by the machine, especially in mid- to late-stage crops.
2. Maintaining a Level Chassis
Constant Ground Clearance: Regardless of the sprayer's load (a full tank can vary by several tons from empty), air springs automatically maintain a stable chassis height by adjusting internal air pressure.
Ensuring Operational Stability: A level chassis ensures the boom maintains a predetermined height above the ground, which is crucial for uniform spraying. If the chassis tilts, with one side of the boom higher than the other, uneven spray distribution will occur.
3. Improved Operator Comfort
For modern sprayers with comfortable cabs, air spring suspension significantly reduces vibration and noise transmitted to the cab, alleviating operator fatigue and improving efficiency and safety during extended operations.
4. Protecting the Boom System
This is one of the most critical functions. The boom is connected to the chassis via a linkage or directly. Severe vibrations can be directly transmitted to the boom, causing:
Mechanical damage: Fatigue and fracture of the boom structure.
Degraded spraying quality: Violent up-and-down movement of the boom can cause overlapping or missed sprays, seriously impacting spraying results.

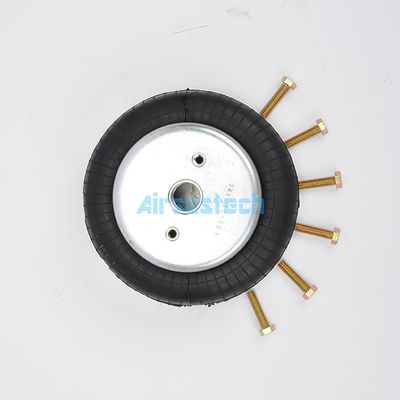

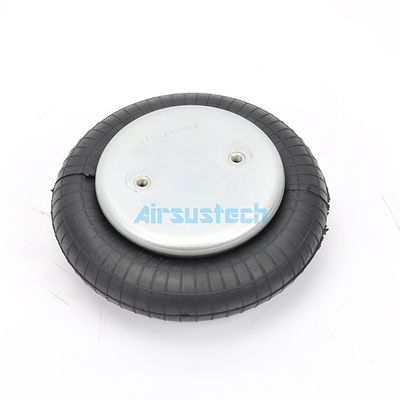

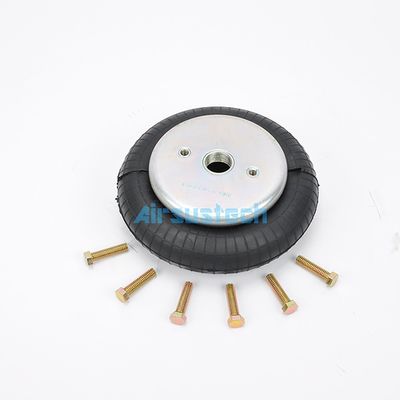

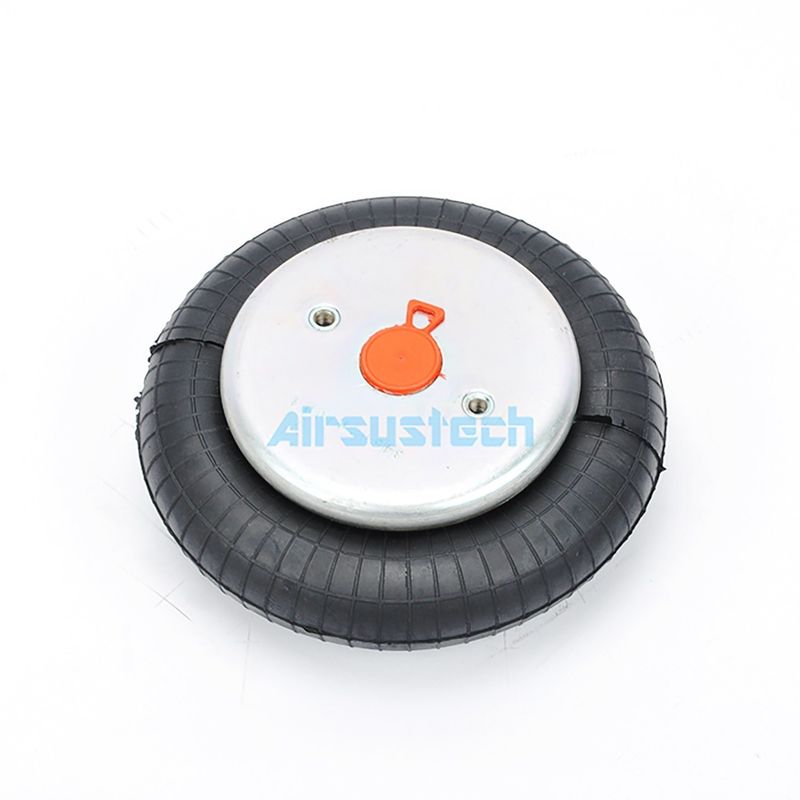

The photos of 1B1209
