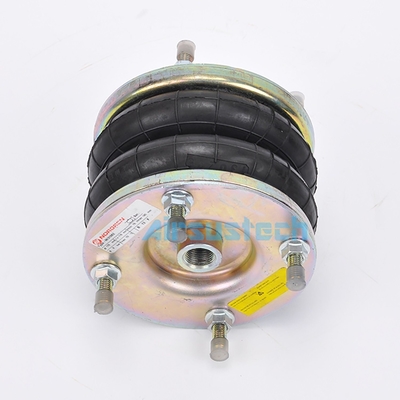

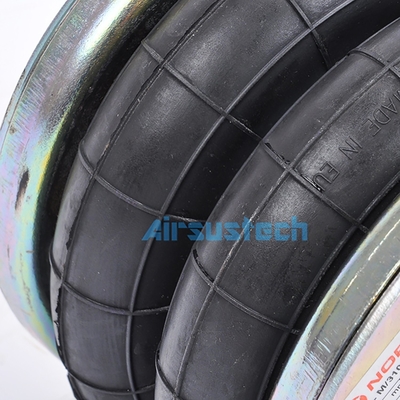

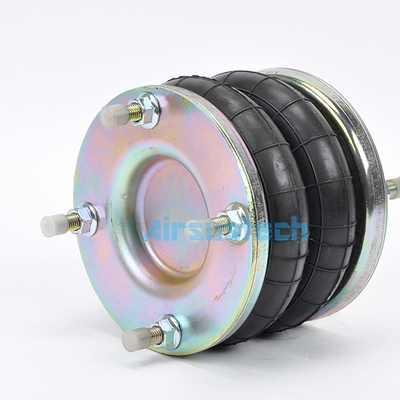

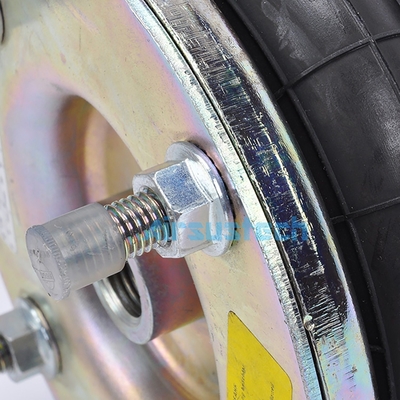

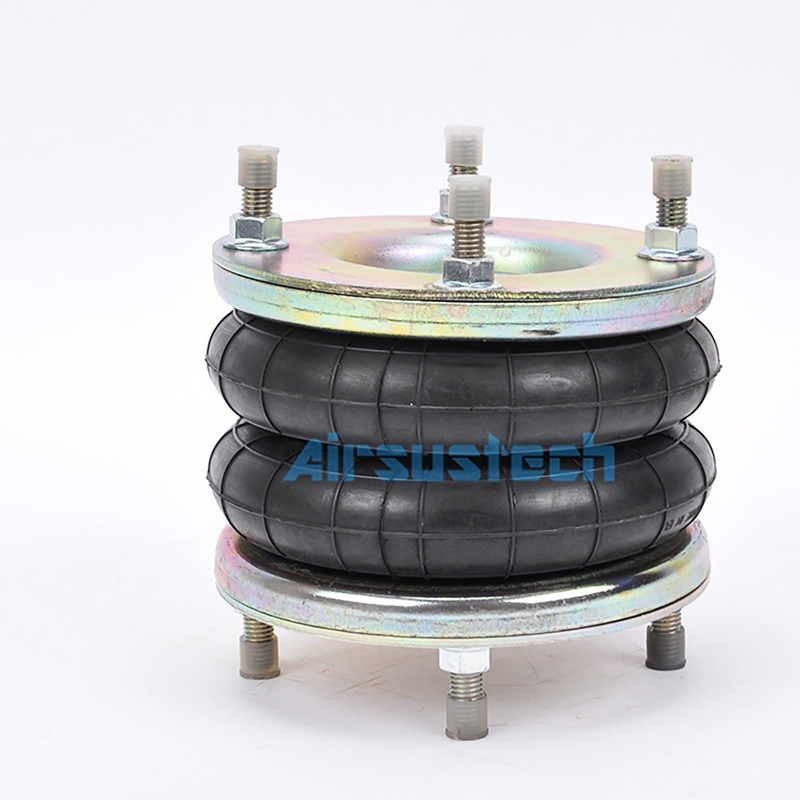

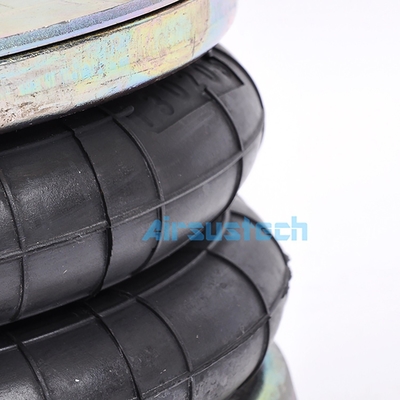

Dunlop SP1482 Double Convoluted Air Cylinder FD 76-14 DI CR Contitech Rubber Air Spring

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Quảng Châu Trung Quốc
Hàng hiệu:	GUOMAT
Chứng nhận:	ISO/TS16949, ISO9001
Số mô hình:	2b6x2t

Thanh toán:

Số lượng đặt hàng tối thiểu:	5pcs
Giá bán:	USD99.9-399.9/PC
chi tiết đóng gói:	Hộp carton mạnh mẽ hoặc theo yêu cầu của khách hàng
Thời gian giao hàng:	3-7 ngày làm việc
Điều khoản thanh toán:	L/C, T/T, Liên minh phương Tây hoặc những người khác
Khả năng cung cấp:	1000pcs/tuần

Tiếp xúc

Chi tiết sản phẩm

Tên mô hình:	Lò xo không khí mặt bích	Chất lượng:	Đã thử nghiệm 100 %
Đấu thầu:	Giảm sốc	Gói vận chuyển:	Thùng thuốc mạnh
Dịch vụ sau bán hàng:	12 tháng	Kiểu:	Chứa đầy khí
Contitech:	Fd 76-14	Màu sắc:	Đen

Dunlop SP1482 Double Convoluted Air Cylinder FD 76-14 DI CR Contitech Rubber Air Spring

OEM NO.

ContiTech: FD 76-14 1/2 M10

ContiTech: FD 76-14 DS G1/2

ContiTech: FD 76-14 DS G1/2 CR

ContiTech: FD 76-14 DS CR G1/2

ContiTech: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR

ContiTech Bellow: FD 76-14 / FD76-14 / FD7614

Norgren: M/31062 / M 31062 / M31062

Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2

Dunlop FR: SP1482

Dunlop UK (Pneuride): PNP 30550 01 12 / PNP30550 0112

Double Convoluted Air Spring 2B180-115 D185

Replaces These Air Springs (Air Bellows)

Specifications and Detailed Technical Parameters: 6×2

Nut/blind nut

Top plate screw (nut) teeth: 4×M10
Screw (nut) teeth of the bottom cover plate: 4×M10

The screw center distance:127mm

Air hole/air inlet/air fittings

Air hole/air inlet: G1/2

Rubber Bellows

Top plate diameter (width): 153.5 mm

Diameter (width) of the bottom cover plate: 153.5 mm

Material top and bottom plate: aluminum

Bell rubber bellows
Maximum diameter at 7 bar: 175MM

Rubber bellows stroke: 80mm-195mm

Required installation space: 190mm

Bumper block/bumper block

Without bumper block

Belt loop/Belt loop

With belt loop: One belt loop

Min. pressure: 0 bar

Return force to min.height: ≤180N

Overall weight with clamped plates: 2.6kg

Air springs exhibit nonlinear characteristics, with their stiffness varying with load. This allows their natural frequency to remain nearly constant under any load, resulting in a virtually unchanging spring mechanism. They also offer excellent high-frequency vibration absorption and sound insulation. They can withstand both axial and radial loads, and their load-bearing capacity can be adjusted by adjusting the internal pressure.

Therefore, they can adapt to a wide range of load requirements.

Within their effective travel, air springs can adjust their stiffness, height, cavity volume, and load capacity by increasing or decreasing the inflation pressure. Simultaneously, their stiffness, height, cavity volume, and load capacity undergo smooth, cyclical, flexible changes as the load increases or decreases, enabling flexible load transfer, effective travel adjustment, and efficient control of vibration amplitude and load. Additional air chambers can be added, utilizing a solenoid valve and air pump for automatic adjustment.

Due to these characteristics, air springs are increasingly used in equipment and instruments requiring travel control, vibration damping, or seismic isolation, such as trains, automobiles, papermaking machines, lifting platforms, presses, vibrating conveyors, vibrating screens, air hammers, vibration testing machines, and foundry machinery.

Other Kind of Flange Air Spring

Part No.	Gas Hole	Screw
FS 76-7 DS	G1/2	M10
FS 138-8 DS	G1/2	M10
FS 210-10 DS	G1/2	M10
FS 412-10 DS	G1/2	M10
FS 614-13 DS	G1/2	M10
FS 816-15 DS	G1/2	M10
FD 76-14 DS	G1/2	M10
FD 138-18 DS	G1/2	M10
FD 209-21 DS	G1/2	M10
FD 210-22 DS	G1/2	M10
FD 412-18 DS	G1/2	M10
FD 614-26 DS	G1/2	M10
FT 76-20 DS	G1/2	M10
FT 138-26 DS	G1/2	M10
FT 210-32 DS	G1/2	M10
FT 412-32 DS	G1/2	M10
FT 614-36 DS	G1/2	M10
