| Nguồn gốc: | Quảng Châu, Trung Quốc |
| Hàng hiệu: | GUOMAT |
| Chứng nhận: | ISO/Ts16949:2009 |
| Số mô hình: | 2B6910 |
| Số lượng đặt hàng tối thiểu: | 6pcs |
|---|---|
| Giá bán: | $59.9-69.9/pc |
| chi tiết đóng gói: | Hộp carton mạnh hoặc khi khách hàng cần |
| Thời gian giao hàng: | 2-8 ngày làm việc |
| Điều khoản thanh toán: | L/C, T/T, Liên minh phương Tây |
| Khả năng cung cấp: | 1000pcs/tuần |
| Chất lượng: | Đã thử nghiệm 100 % | Đấu thầu: | Giảm sốc |
|---|---|---|---|
| Tham khảo chéo: | Goodyear 2b9-200/202/216 578423202 | Gói vận chuyển: | Thùng thuốc mạnh |
| Mã HS: | 8708809000 | Bảo hành: | 12 tháng |
| Phần: | Lò xo không khí | Loại mùa xuân: | Lò xo không khí |

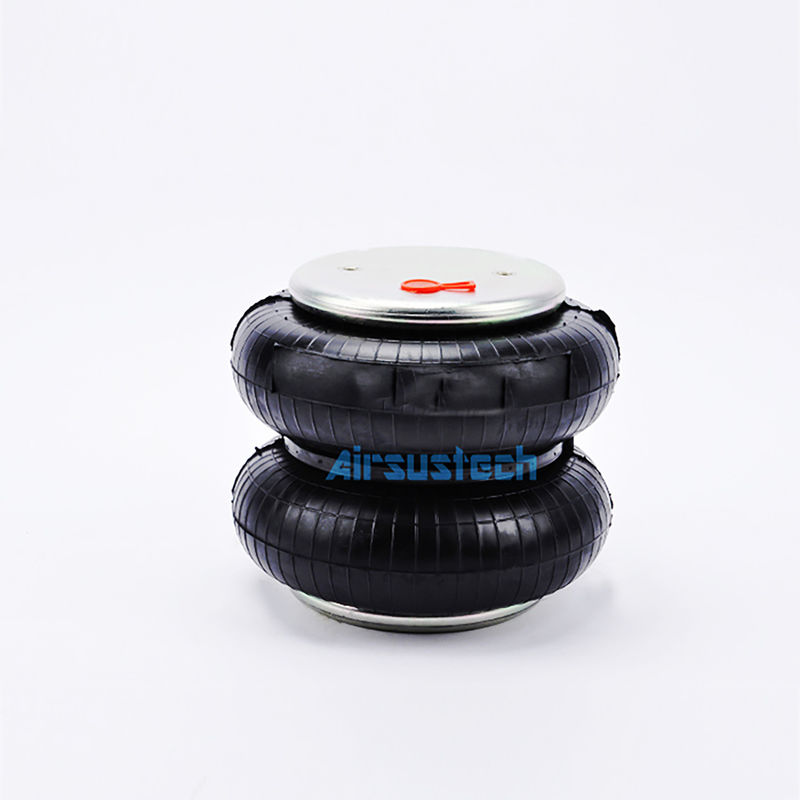

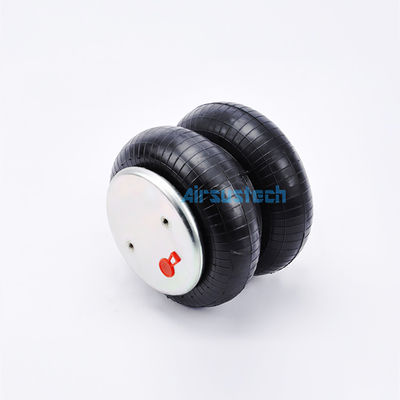

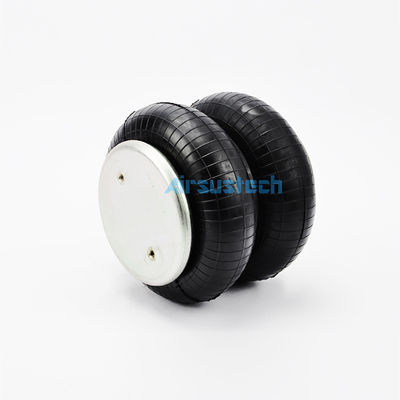

2B9-200 Goodyear Replacement Air Spring 2B9-202 Rubber Air Shock Absorber 2B9-216
Product Description
Brand: GUOMAT
Model Number: 2B6910
Cross Reference
| Firestone | W01-358-6910 | Contitech | FD 200-19 320 |
| Goodyear | 2B9-200 | Goodyear | 2B9-202 |
| Goodyear | 2B9-216 | Goodyear | 578423202 |
| Triangle | 6325/4320 |
Brake & Wheel
|
M3501
|
| Taurus | KF218-6910 |
Dina
|
A812719/AZ812719
|
|
Dayton
|
3546910
|
Leland
|
Sc2011
|
|
Navistar
|
554783C1
|
Hendrickson
|
S8768/458433
|
|
Ridewell
|
1003586910C
|
SAF Holland
|
57006910
|
|
Trailers De
|
133128
|
Tuthill
|
1371
|
|
Watson&Chalin
|
AS-0001
|
Watson&Chalin
|
AS-0156G
|
Specifications and Tecnical Parameters
Blind Nut
Nut/blind nut Top plate screw (nut) teeth: 2 x 3/8-16UNC
Top plate screw center distance: 89 mm
Bottom cover plate screw (nut) teeth: 2 x 3/8-16UNC
Bottom plate screw center distance : 89 mm
Air hole/air inlet/air fitting air hole/air inlet
1/4NPTF
The distance between the air hole and the screw center: 44.5mm
Cover plate
Top plate diameter (width): 160 mm
Bottom cover diameter (width): 160 mm
Rubber Bellows
Rubber bellows natural diameter: 224 mm
Rubber bellows Max. diameter: 251mm
Height
Min. height: 75mm
Max. height: 260mm
Bumper block/bumper block
Without bumper
Belt loop/Girdle hoop/Girdle ring
One piece of belt loop/girdle hoop/girdle ring
Air Spring Storage and Maintenance
Storage and maintenance of air springs are crucial to their service life and performance. During storage, the air spring should be completely depressurized and stored in a cool, dry, and well-ventilated indoor environment, away from direct sunlight, ozone sources (such as large motors), heat sources, oils, and chemicals. The ideal storage temperature is between 10-25°C. The air spring should also be protected from prolonged exposure to excessive compression, tension, or distortion. Regularly changing its storage position (e.g., every three months) is recommended. During routine maintenance, perform a visual inspection regularly (e.g., weekly or every shift) to check for abnormal bulges, cracks, scratches, and debonding at the metal joints. Before each operation, ensure that the system pressure is stable and use soapy water to test the air line connections and the air spring body for airtightness. Furthermore, the upper and lower contact surfaces must be kept clean to prevent dirt from abrading the air spring skin. Ensure that the air spring can freely extend and retract during lifting and lowering without external interference or friction. Following these systematic storage and maintenance procedures can effectively prevent malfunctions and significantly extend the service life of the air spring.
The picture
